SIZP S Rod Ends

SIZP S Rod Ends

SIZP4S, SIZP6S, SIZP7S, SIZP9S, SIZP11S, SIZP12S, SIZP15S, SIZP19S, SIZP25S rod end,heim joint from China.

If you are going to import sizp s rod ends in stock or you want to check the price with one China sizp s rod ends manufacturer, supplier and factory, please feel free to contact Yousen bearing.

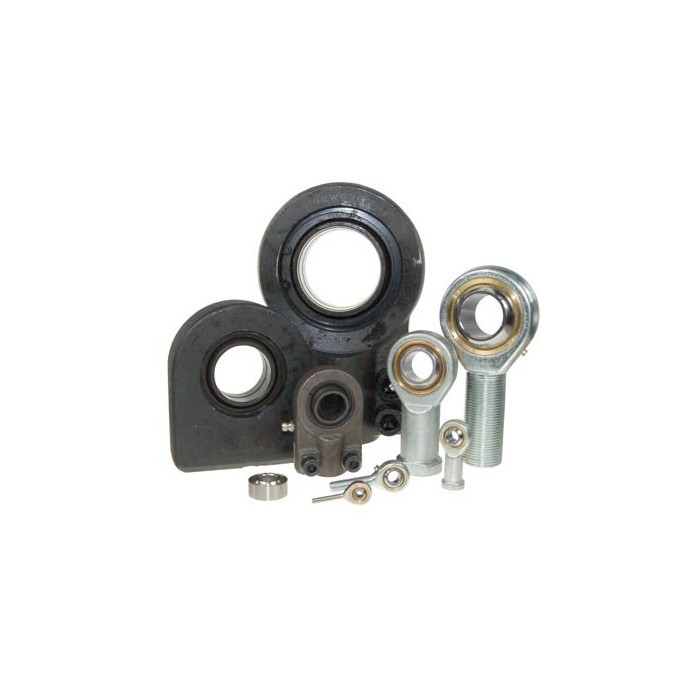

Rod ends are available with left or right-hand female or male threads, steel and zinc coated,  spherical surface with bronze liner; inner ring of carbon chromium steel, spherical surface with chromium plating; can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mouting and dismounting and mechanism simplification.


More details


SIZP4S, SIZP6S, SIZP7S, SIZP9S, SIZP11S, SIZP12S, SIZP15S, SIZP19S, SIZP25S rod end,heim joint from China Shanghai Yousen bearing.

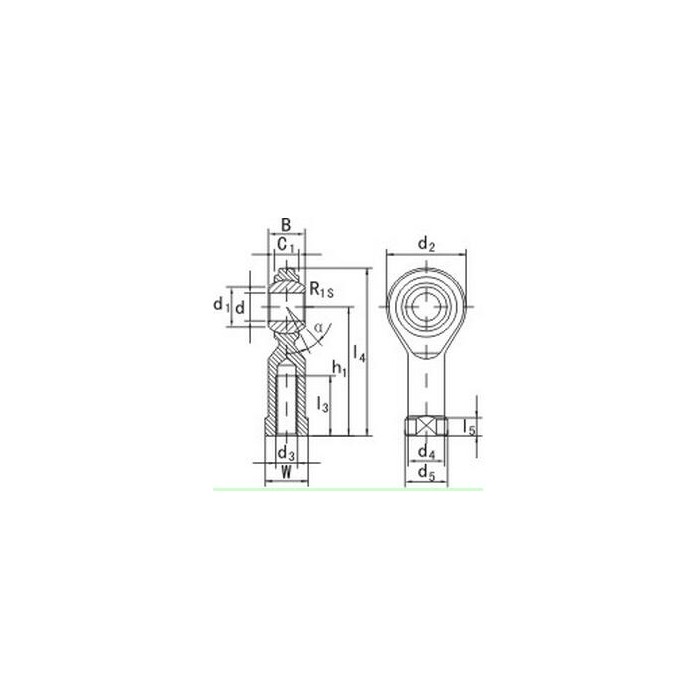

PART NO.

DIMENSIONS    (mm)

LOAD RATINGS(kn)

WEIGHT (kg)

d

B

C1

d1

R1S

d2

h1

L3

L4

L5

d4

d5

w

a

Dynamic

Static








min




≈

Cr

Cor

SIZP4S

4.826

7.92

6.35

7.8

0.3

15.88

26.97

14.27

34.91

4.75

7.54

10.31

7.92

10

3.4

4.6

0.015

SIZP6S

6.35

9.53

7.14

8.4

0.3

19.05

33.32

19.05

42.85

4.75

9.15

11.91

9.53

13

4.5

7.7

0.025

SIZP7S

7.938

11.1

8.74

11.4

0.3

22.23

34.93

19.05

46.04

4.75

10.72

12.7

11.1

10

6.9

8.4

0.036

SIZP9S

9.525

12.7

10.31

13.1

0.6

25.4

41.28

23.8

53.98

6.35

13.89

17.45

14.27

9

9.4

10

0.061

SIZP11S

11.11

14.27

11.1

14.9

0.6

28.58

46.02

26.97

60.31

6.35

15.49

19.05

15.88

11

11

13

0.084

SIZP12S

12.7

15.88

12.7

17.7

0.6

33.32

53.98

30.15

70.64

6.35

18.67

22.23

19.05

9

15

19

0.133

SIZP15S

15.88

19.05

14.27

21.1

0.6

38.1

63.5

38.1

82.55

7.92

21.84

25.4

22.23

11

20

21

0.19

SIZP19S

19.05

22.23

17.45

24.8

0.6

44.45

73.03

44.45

95.25

7.92

25.02

28.58

25.4

10

29

29

0.285

SIZP25S

25.4

34.93

25.4

32.2

0.6

69.85

104.78

53.98

139.7

11.1

37.72

44.45

38.1
