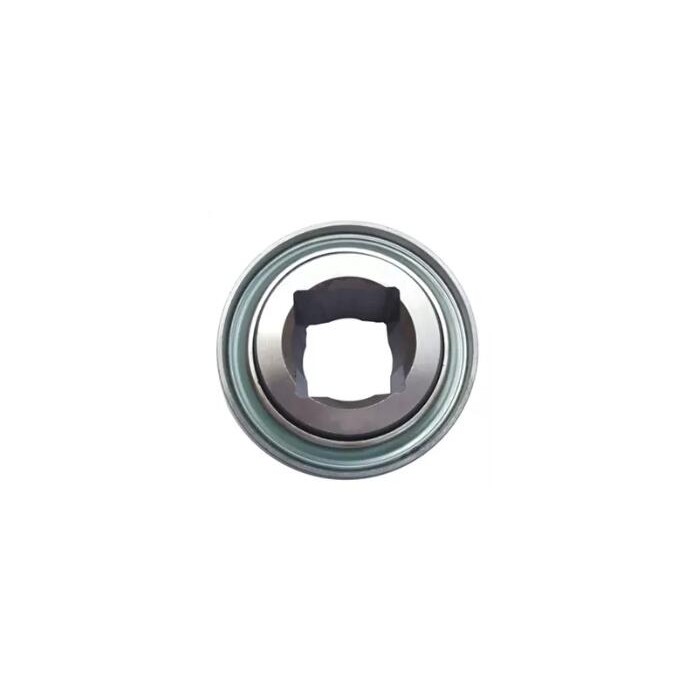

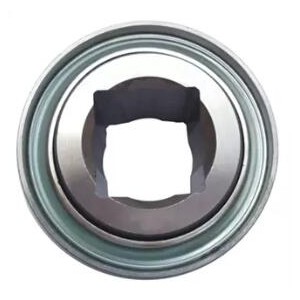

1 1/8 inch Square bore bearing W210PPB6 agriculture machinery bearing

1 1/8 inch Square bore bearing W210PPB6 agriculture machinery bearing

1 1/8 inch Square bore bearing W210PPB6 agriculture machinery bearing

 Agricultural bearings are used in conveyors, lawn mowers, combines, hay balers, planters/grain drills, augers, cotton strippers, and more. They are designed to stand up to extreme conditions and loads. There are many different designs available. Their basic components are inner and outer rings, balls, and retainers. The inner race can be round, square, or hex, and the outer race can be either cylindrical or spherical. Most agricultural bearings are sealed on both sides with single, double, or triple lip.

More details


Agricultural bearings are used in conveyors, lawn mowers, combines, hay balers, planters/grain drills, augers, cotton strippers, and more. They are designed to stand up to extreme conditions and loads. There are many different designs available. Their basic components are inner and outer rings, balls, and retainers. The inner race can be round, square, or hex, and the outer race can be either cylindrical or spherical. Most agricultural bearings are sealed on both sides with single, double, or triple lip.



earing Number  Bore Type  Bore Diameter Outside Diameter  Inner Width Outer Width Weight
mm Kg
W208PPB7 Round  30.17 80 30.18 18 0.64
W208PPB2 Round  38.113 80 42.96 18 0.721
W208PPB23 Round  38.113 80 42.96 30.18 0.681
W209PPB2 Round  45 85 30.18 30.18 0.653
W209PPB4 Round  39 85 30.18 30.18 0.748
W210PPB2 Round  49.23 90 30.18 30.18 0.708
W210PPB5 Round  45.34 90 30.18 30.18 0.794
W211PPB2 Round  55.58 100 33.34 33.34 0.966
W214PPB2 Round  70 125 39.69 39.69 1.796
W214PPB9 Round  70 125 44.45 28 1.796
Model no.:

W210PPB6 Agricultural Bearing
Quality             Standard: ISO9001:2008
MOQ: 100 PCS
Bore Size 1 1/8 inch
Outiside Diameter: 3.5433 inch
Inner Width: 1.438 inch
Outer Width: 1.188 inch
Seal Type: Tri-Ply Seal
Hardness: 59-63 HRC
 Material: Chrome steel Gcr15
 Cage Steel,Steel
Technology & QC Process for Agricultural bearings

 1. Assembly
2. Windage test
3. Cleaning
4. Rotary Test
5. Greasing and gland
6. Noise Inspection
7. Appearance Inspection
8. Rust Prevention
9. Product Packaging
Application for Agricultural bearings
 lawn mowers, combines
