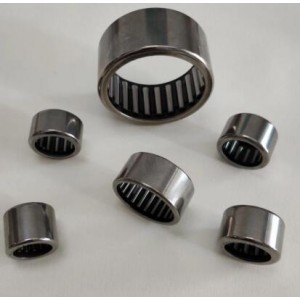

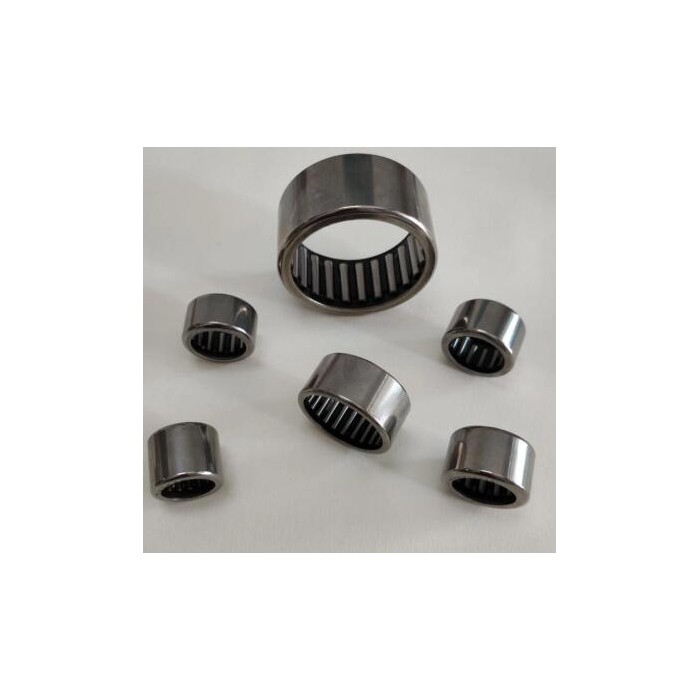

Sealed Drawn Cup Needle Roller Bearing



Sealed Drawn Cup Needle Roller Bearing is punched by the alloy plate,

 with thin-walled outer ring, cage and Needle Roller. Mainly used in automobile, textile machinery, and motorcycle field.


Main characteristic

1. Shaft can be used as raceway
2. Small radial spatial structure
3. low cost, easy to assemble
4. Can carry high load

Structure sheet

Metric size

Inch size

Structure instruction

HK,TLA,TA

SCE,SCH,BA,BHA,JH

open

BK,TLAM,TAM

BCE,BCH,BAM,BHAM

closed

HK.RS;HK.2RS

SCE.PP,BA.PP

Open, with seal

BK.RS

BCE.P,BAM.P

closed, with single seal

FY,HN,YT

SN,YB

Open, with full complement flat needle roller

MFY.TTL

YBL

Closed, with full complement flat needle roller

F,FH

B,BH

Open, with full complement tip needle roller

MF

M,MH

Closed ,with full complement tip needle roller

Outer ring

1． material: ST12 low carbon steel

2． process: punching

3． heat treatment: carburize, high frequency temper

Cage

1. material: ST12 low carbon steel

2. process: punching

3. heat treatment: carburize, black coating

Needle roller

1. material: GCr15 chrome steel

2. process: grinding

3. HRc60-64heat treatment: quenching, HRC60-64



Shaft model Mass Dimensions     Shaft model Mass Dimensions
mm   g Fw D C     mm   g Fw D C
8 HK0810RS 3 8 12 10     25 HK2516.2RS 27 25 32 16
HK0812.2RS 3.3 8 12 12     HK2518RS 29 25 32 18
10 HK1012RS 4.2 10 14 12     HK2520.2RS 31 25 32 20
HK1014.2RS 4.6 10 14 14     HK2524.2RS 40 25 32 24
12 HK1214RS 10 12 18 14     HK2530.2RS 47 25 32 30
HK1216.2RS 11 12 18 16     28 HK2818RS 31 28 35 18
14 HK1414RS 12 14 20 14     HK2820.2RS 34 28 35 20
HK1416.2RS 13 14 20 16     30 HK3016.2RS 31 30 37 16
15 HK1514RS 12 15 21 14     HK3018RS 37 30 37 18
HK1516.2RS 15 15 21 16     HK3020.2RS 36 30 37 20
HK1518RS 16 15 21 18     HK3024.2RS 44 30 37 24
HK1520.2RS 18 15 21 20     35 HK3516.2RS 32 35 42 16
16 HK1614RS 13 16 22 14     HK3518RS 39 35 42 18
HK1616.2RS 14 16 22 16     HK3520.2RS 41 35 42 20
HK1620.2RS 18 16 22 20     40 HK4016.2RS 37 40 47 16
18 HK1814RS 14 18 24 14     HK4018RS 45 40 47 18
HK1816.2RS 15 18 24 16     HK4020.2RS 48 40 47 20
20 HK2016.2RS 18 20 26 16     45 HK4518RS 50 45 52 18
HK2018RS 21 20 26 18     HK4520.2RS 54 45 52 20
HK2020.2RS 23 20 26 20     50 HK5022RS 76 50 58 22
22 HK2214RS 16 22 28 14     HK5024.2RS 81 50 58 24
HK2216.2RS 18 22 28 16
HK2218RS 24 22 28 18
HK2220.2RS 26 22 28 20
