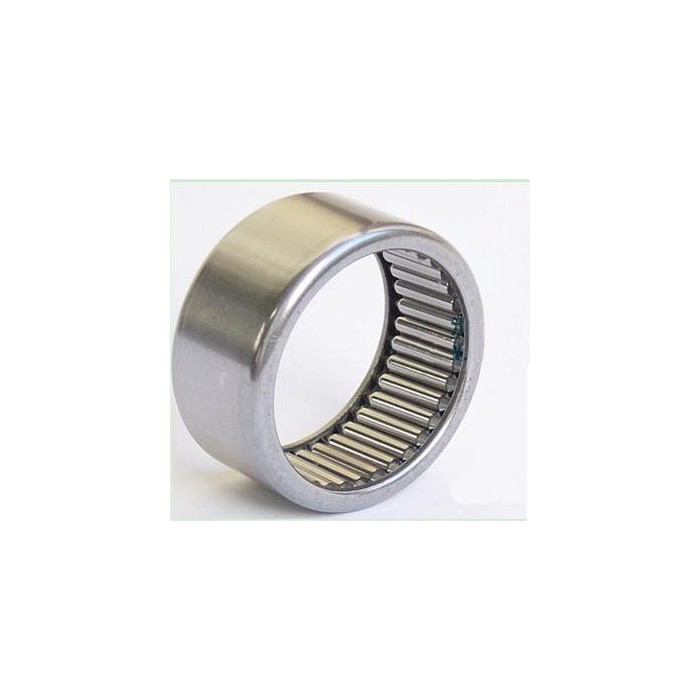

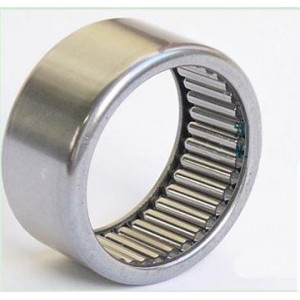

Drawn Cup Needle Bearing B-66

Drawn Cup Needle Bearing B-66

Drawn Cup Needle Bearing B-66

Drawn Cup Needle Bearing B-66,B66 Needle roller Bearing,needle bearing B66

More details


Drawn Cup Needle Bearing B-66

Drawn Cup Needle Bearing B-66,B66 Needle roller Bearing,needle bearing B66

Product Details

Bore Fraction 3/8"
Bore 0.3750
OD Fraction 1/2"
OD 0.5000
W Fraction 3/8"
W 0.3000
Static Load Rating 1,650
Working Load 944
Interchange TORRINGTON B66, INA S66, KAYDON CS66
Weight 0.200



Drawn Cup Needle Bearing B Series
The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings
Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
Shanghai Yousen Bearing Co.,ltd.
www.sysbearing.com
sales@sysbearing.com

Drawn Cup Needle Bearing B Series

The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.

The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings


Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
