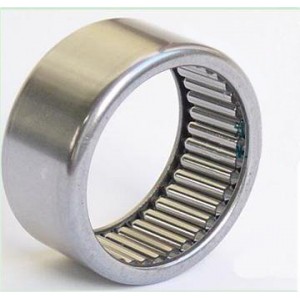

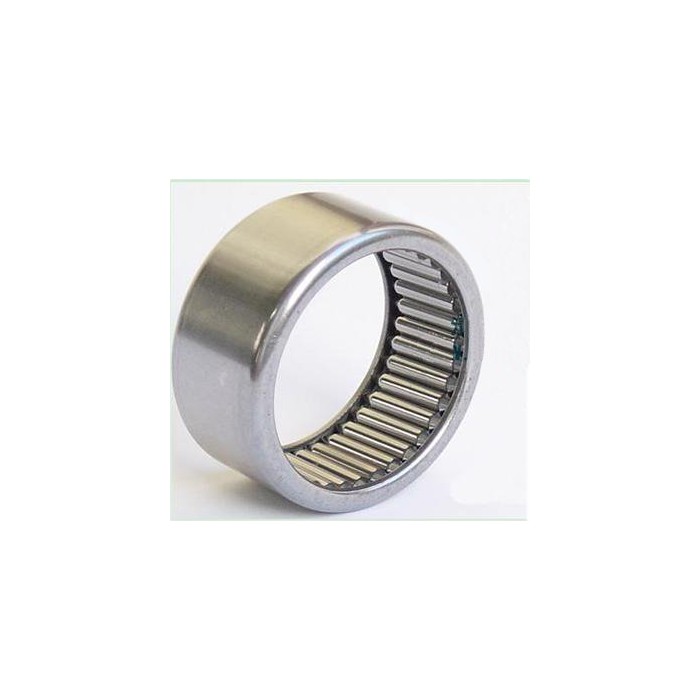

Drawn Cup Needle Bearing BH-1416

Drawn Cup Needle Bearing BH-1416

Drawn Cup Needle Bearing BH-1416

TORRINGTON BH1416, INA SH1416, KAYDON CSH1416

Drawn Cup Needle Bearing BH-1416,Needle Bearing B1416,B1416 Needle roller Bearing

More details


Drawn Cup Needle Bearing BH-1416

Product Details

Drawn Cup Needle Bearing BH-1416,Needle Bearing B1416,B1416 Needle roller Bearing

Bore Fraction 7/8"
Bore 0.8750
OD Fraction 1-3/16"
OD 1.1875
W Fraction 1"
W 1.0000
Static Load Rating 13,600
Working Load 7,550
Interchange TORRINGTON BH1416, INA SH1416, KAYDON CSH1416
Weight 0.030



Drawn Cup Needle Bearing B Series
The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings
Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
