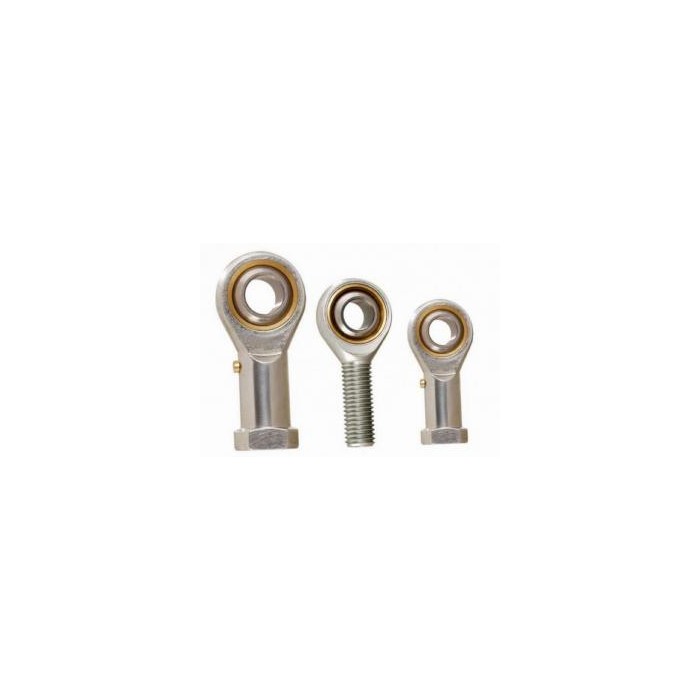

POS35 Rod End Bearing,Rod End POSB35 China,Rod End Bearing POS35
Rod end with bronze liner. Body is made of carbon steel, zinc coated,
with male or female thread; sliding surface with bronze liner; inner ring
is made of carbon chromium steel, spherical surface with hard chrome
plated. It can be relubricated via a nipple or a hole in the rod end, except
the hole diameter d≤6.
POS Rod End Bearing,pos8 rod end,pos10 rod end,pos12 rod end,pos14 rod end,pos16 rod end,pos18 rod end
Sliding
contact
surfaces:
|
Steel/Bronze | |||||||||||||
Bearing Number |
Load ratings KN |
≈a° | Unit Weight (kg) |
|||||||||||
Dimensions(mm) | ||||||||||||||
d | B | dk | C1 | d2 | G | h | l1 | l2 | l7 | Dyna- mic |
S- tatic |
|||
POS 5 | 5 | 8 | 11.11 | 6 | 18 | M5X0.8 | 33 | 20 | 41 | * | 3.3 | 3.9 | 13 | 0.013 |
POS 6 | 6 | 9 | 12.7 | 6.75 | 20 | M6X1 | 36 | 22 | 45 | * | 4.3 | 5.2 | 13 | 0.02 |
POS 8 | 8 | 12 | 15.8 | 9 | 24 | M8X1.25 | 42 | 25 | 53 | * | 6.8 | 8.2 | 14 | 0.038 |
POS 10 | 10 | 14 | 19.05 | 10.5 | 28 | M10X1.5 | 48 | 29 | 61 | * | 10 | 15 | 13 | 0.071 |
M10X1.25 | ||||||||||||||
POS 12 | 12 | 16 | 22.23 | 12 | 32 | M12X1.75 | 54 | 33 | 69 | * | 13 | 19 | 13 | 0.12 |
M12X1.25 | ||||||||||||||
POS 14 | 14 | 19 | 25.4 | 13.5 | 36 | M14X2 | 60 | 36 | 77 | * | 17 | 24 | 16 | 0.17 |
M14X1.5 | ||||||||||||||
POS 16 | 16 | 21 | 28.58 | 15 | 42 | M16X2 | 66 | 40 | 85 | * | 21 | 29 | 15 | 0.23 |
M16X1.5 | ||||||||||||||
POS 18 | 18 | 23 | 31.75 | 16.5 | 46 | M18X1.5 | 72 | 44 | 93 | 23 | 26 | 34 | 15 | 0.31 |
POS 20 | 20 | 25 | 34.93 | 18 | 50 | M20X1.5 | 78 | 47 | 101 | 25 | 31 | 40 | 14 | 0.4 |
POS 22 | 22 | 28 | 38.1 | 20 | 54 | M22X1.5 | 84 | 51 | 109 | 27 | 38 | 50 | 15 | 0.49 |
POS 25 | 25 | 31 | 42.86 | 22 | 60 | M24X2 | 94 | 58 | 124 | 29 | 47 | 57 | 15 | 0.65 |
POS 28 | 28 | 35 | 47.6 | 25 | 66 | M27X2 | 103 | 62 | 136 | 33 | 59 | 77 | 15 | 0.949 |
POS 30 | 30 | 37 | 50.8 | 25 | 70 | M30X2 | 110 | 66 | 145 | 39 | 63 | 77 | 17 | 0.87 |
POS 35 | 35 | 43 | 57.15 | 28 | 80 | M36X2 | 125 | 77 | 165 | 42 | 90 | 116 | 17 | 1.1 |
Remark: | ||||||||||||||
1. The listed load rating, unit weight is for reference. |
||||||||||||||
2. For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. POSL20 M20X1.5L-6g |
