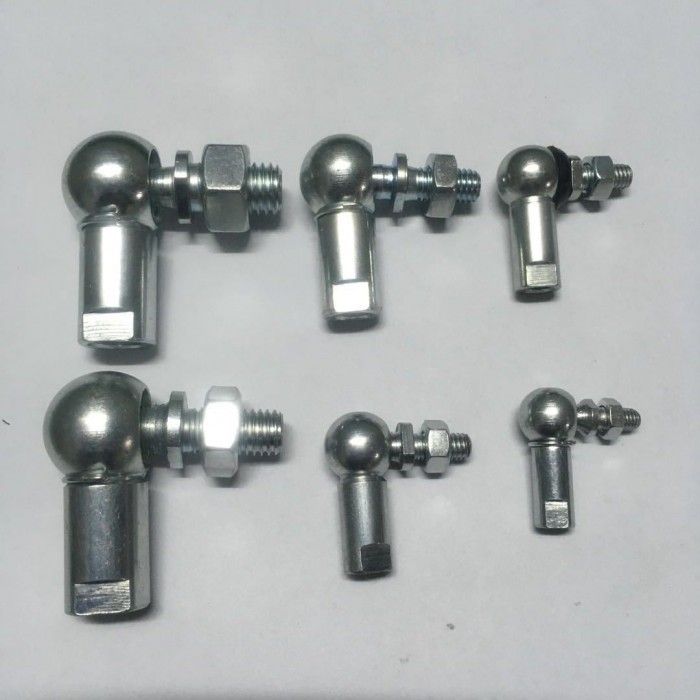

CSM8 ball joint,SQP8S Angle Ball Joint Rod End Bearing

CSM8 ball joint,SQP8S Angle Ball Joint Rod End Bearing

CSM8 ball joint,SQP8S Angle Ball Joint Rod End Bearing

More details


CSM8 ball joint,SQP8S Angle Ball Joint Rod End Bearing



CSM5 ball joint,SQP5S Angle Ball Joint Rod End Bearing



Description
  • Ball Housing: carbon steel and white zinc plated
  • Ball Pin: 45# carbon steel, ASTM 1045, JIS 45C
  • Circlip: spring steel

Features
  • Thread: M10x1.5 thread
  • Net Weight: 0.10kg
  • Lubrication: with grease
  • consist of a ball socket DIN 71805 and a ball shank DIN 71803
  • Performance: high hardness,reliable and durable



  Part No.

 Dimensions      mm

Load ratings

Weight
Right hand Left hand Q

M1

6H

M2

6g

 b c d g h H

k

min

 SW SR KN kg
SQP 5 S SQPL 5 S 8 M5x0.8 M5x0.8 9 10 8 8 22 0.7 10.2 7 6.4 15.2 0.014
SQP 6 S SQPL 6 S  10 M6x1.0 M6x1.0 11 12.5 10 10 25 0.7 11.5 8 7.4 25.2 0.024
SQP 8 S SQPL 8 S  13 M8x1.25 M8x1.25 13 16.5 13 13 30 1.16 14 11 9.65 53.1 0.053
SQP 10 S SQPL 10 S 16 M10x1.5 M10x1.5 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQP 12 S SQPL 12 S 16 M12x1.75 M12x1.75 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQP 14 S SQPL 14 S 22 M14x2.0 M14x2.0 20 27 19 22 45 1.5 21.5 17 15 220.9 0.218
SQP 14-1 S SQPL 14-1 S 22 M14x1.5 M14x1.5 20 27 19 22 45 1.5 21.5 17 15 220.9 0.21
